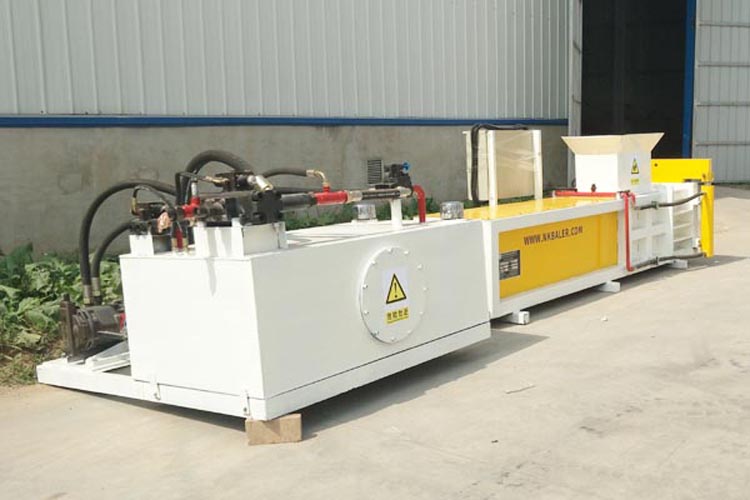

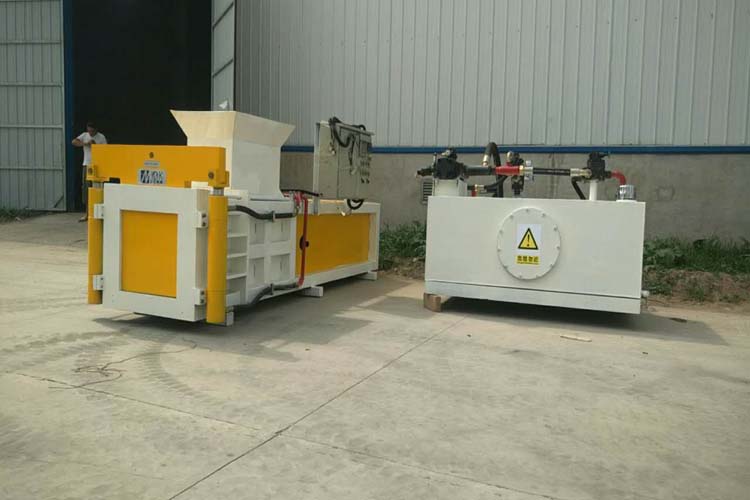

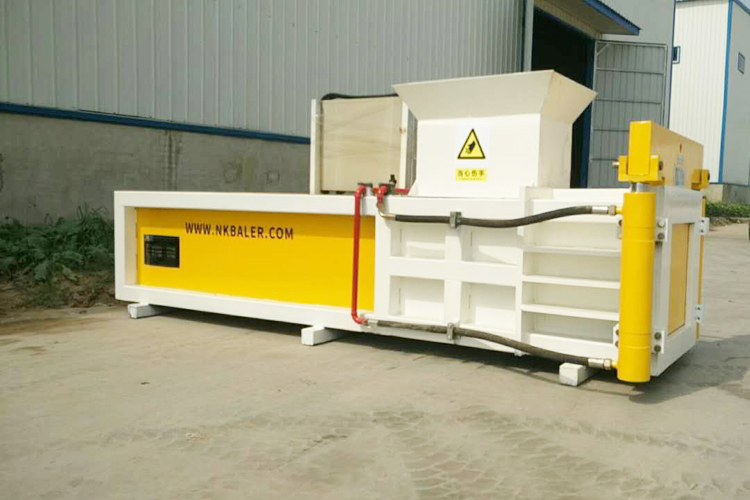

NKB200 CocoPeat Press is a specialized hydraulic baling machine designed for efficiently processing loose coco peat into compact,high-density blocks.Utilizing advanced hydraulic pressure technology,it compresses voluminous coco peat—a byproduct of coconut husk processing—into uniform,stackable bricks that significantly reduce storage space and transportation costs.The machine is engineered for durability and operational ease,featuring an automated compression cycle,adjustable pressure settings,and robust construction to withstand continuous industrial use.
The NKB200 CocoPeat Press is a specialized hydraulic baling machine designed for efficiently processing loose coconut coir pith into compact,high-density blocks.Utilizing advanced hydraulic pressure technology,it compresses moist or pre-treated cocopeat into uniform rectangular bales with significantly reduced volume (typically 1/5 to 1/8 of original size),enabling cost-effective transportation and storage.This robust system features automated operation capabilities,corrosion-resistant components to withstand moist fibrous material,and adjustable pressure settings to accommodate varying material moisture content and density requirements.The resulting compacted blocks are ideal for international export, horticultural substrate production,and industrial applications,transforming bulky agricultural waste into standardized,commercially viable products while supporting sustainable waste-to-resource initiatives in coconut-producing regions.
Features:
Used PLC control system,hydraulic transmission,horizontal continuous out bags,speed,high yield.
The operation is simple,easy to used and high degree of automation,recruitment,using artificial feeding or automatic feeding conveyor.
The machine is mainly applicable in sawdust,cotton seed,shell husk compression moulding material,facilitate their storage,transportation cost.
Broken material via the massive objects,compressed into directly handling, no bag.The rear can be spread by human.
Model | NKB200 |
Pressure | 200Ton |
Bale size(L*W*H)mm | 480*480*220-350mm |
Working Pressure | 21MPa |
Compress time | 22s |
Bale Capacity | 90block/H |
Feed Opening Size(L*H) | 780*480mm |
Bale Weight | 30-35kb/bag |
Capacity | 2.5-3T/hour |
Power(KW) | 40HP |
Voltage | 200-480V/50HZ/3Phase |
Machine size/(L*W*H) mm | 4260*1100*1800mm |
Machine Weight(T) | 8T |
Place of Origin:Made in China
Brand Name:NKBALER
Certification:CE,ISO
Model Number:NKW160Q
Minimum Order Quantity:1
Delivery Time:35-40 days
Payment Terms:40% deposit by T/T,60% before delivery
Supply Ability:150-200 SETS PER YEAR
Just feel free to contact us,we will try our best to service you.
Need more detailed information about this product ?Just contact us now!
The product has been exported to over 60 countries and regions both domestically and internationally
